SET 3000

For big dimensions’ workpieces

SET 3000 includes the bandsaw SV3 MAXI, applied to the articulated arm BS900 and the column, with material support and pressure lock P-250. As for SET2000, it is suggested to execute circular cuts. The main difference is the cutting height, which reaches a maximum of 45 cm. SET 3000 includes:

  • BANDSAW SV3 MAXI
  • COPYING DEVICE
  • BELLOW PROTECTION SYSTEM
  • DOUBLE HANDGRIP
  • ARTICULATED ARM BS900  READ MORE
  • COLUMN
  • ARC CUTTING DEVICE
  • MATERIAL SUPPORT WITH FRAMEWORK
  • PRESSURE LOCK P-250
REQUEST INFO

    Contact Us

    Feel free to ask for details, don't save any questions!


    * I agree with privacy policy terms treated pursuant to Italian D. Lgs. 196/03 and EU regulation 2016/679.Privacy Policy

    captcha



    RICHIEDI INFORMAZIONI

      Contattaci

      Scrivici usando il modulo seguente, risponderemo ad ogni tua domanda!


      * Autorizzo il trattamento dei dati personali ai sensi della Legge 196/03 e del Reg.to Ue 2016/679.Privacy Policy

      captcha



      TECHNICAL DATA

      SV3 MAXI  READ MORE
      Cutting width 25″ (640 mm)
      Cutting height 16″ (400 mm)
      Maximum cutting height with special blade-guide 18″ (450 mm)
      Blade length 144″ (3650 mm)
      Minimum blade width 0.11″ (3 mm)
      Power of the motor 3 HP – 2.2 kW
      Weight 926 lb (420 kg)
      *Cutting tolerance, which depends on the type of blade used and on the cutting heights, is considered as the tolerance for standard bandsaw. The use of the blades does not guarantee a tolerance lower than ± 2 mm

      PRODUCT FEATURES

      Arc Cutting Device

      With the arc cutting device, made of a special metric bar, it is possible to cut arcs and circular shapes up to 360°.

      Column

      The column enables to rotate 360° the machine, realizing multiple circular and shaped cuttings at the same time.

      Material Support

      The material support with framework allows to place on it long pieces of material to work.

      Pressure Lock

      The pressure lock 250 is a clamping bracket used to fasten the wooden pieces to work.

      Copying Device

      The use of the copying device is combined with template application: the device leans on the template and reproduce its shape on several wooden pieces.

      Bellow Protection

      Bellow protection system has been conceived for the operator safety and to protect the blade. It can be regulated according to cutting height, ensuring a work safety.

      Double Handgrip

      The double handgrip means safety: the machine works only when the operator places both hands on the control device.

      Articulated Arm

      The articulated arm is the main feature of all MD DARIO® machineries. It allows the bandsaw to rotate in every direction.

      ADDITIONAL ACCESSORIES

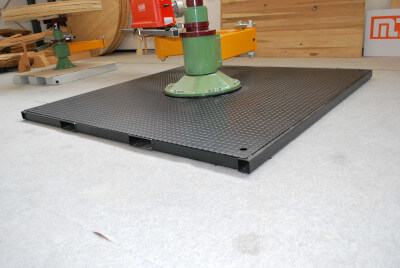

      Forklift base – Fixing the column BC800 on the forklift base, it is possible to move SET3000 with a forklift truck, without fastening it on the ground.

      Extended articulated arm –The extended articulated arm BS600EX, reaching an extension of 230 cm, allows to cut circumferences with a maximum radius of 215 cm.

      The length of the articulated arm can be customized, according to the dimensions of the piece to work

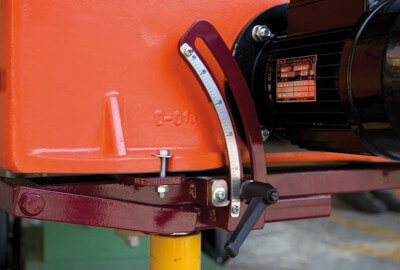

      SR900 – The tilting device allows to manually tilt the machine up to 45°. The regulation can be easily make through a grade hand wheel adjuster.It must be considered that to higher inclination corresponds a lower side light.

      SPECIAL DEVICES

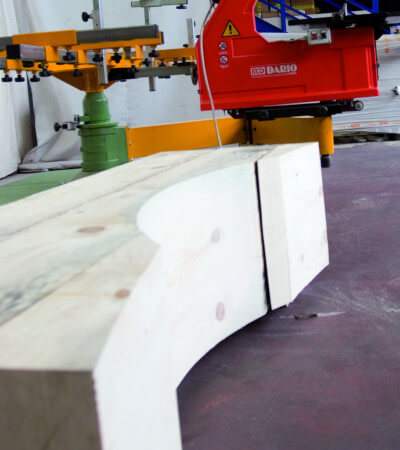

      Saddle cut  device  – The saddle cut device is suggested for the realization of saddles with different radius.

      Applied to the column of SET2000, it is made up of a special material support with pneumatic hold-down device.

      The dimensions of the support vary according to the dimensions of the saddles to cut. The saddle radius is adjustable through a metric bar applied to the bandsaw.

      For special works, it is possible to apply the material advance device and/or the anti-fall device.

      Watch the video of the device.

      Pneumatic support – The pneumatic support allows to fasten and cut several pieces at the same time (for instance beams, panels, etc.) and it is suggested to shape different kind of wooden pieces: saddles for pipes’ transport, shutters, columns, chairs’ legs, etc.

      The combined use of a template makes the cut easier and faster.

      Extra column – It is possible to add to SET3000 an extra column, allowing to fix big dimensions’ pieces that need to be shaped on both sides.

      Butterfly Support – The special pneumatic support with double station is the best solution to shape several panels in the shortest possible time. Provided with a pneumatic lock to fasten the material, it allows to overlap the panels, placing the template on top of them. Thanks to the copying device applied to the blade guide, it is possible to follow the template realizing the cut. The operator can execute the cut on one side while another operator can remove the finished pieces and prepare the new material to be cut, with a significant time savings.
