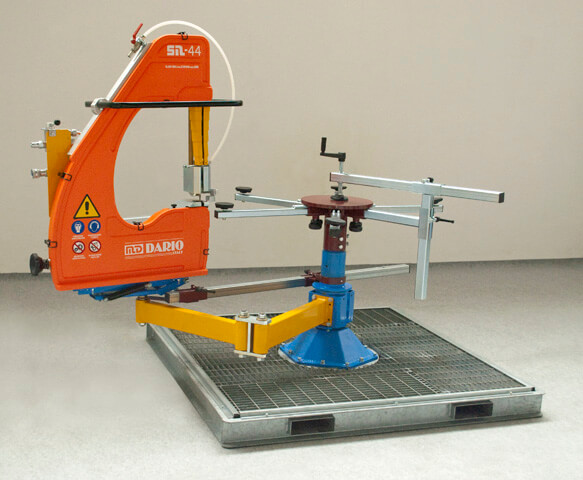

set300 md-dario bandsaws 1
Fireplace in Parisian apartment/home.
Monument
ruben
SET400_Process

SET 300

To cut up to 25 cm high

Manual and easy to use, SET300 can be fixed on a column to the ground. It is recommended to cut shapes, arcs and circumferences, since the articulated arm, moving around the column, allows to rotate the saw 360°. SET 300 includes:

  • BANDSAW SN33 OR SN44
  • COPYING DEVICE
  • BELLOW PROTECTION SYSTEM
  • ARTICULATED ARM BS600  READ MORE
  • COLUMN
  • ARC CUTTING DEVICE
  • HYDRAULIC MOTOR WITH ADJUSTABLE SPEED
  • TILTING DEVICE SR700M
  • MATERIAL SUPPORT
  • PRESSURE LOCK P-250
REQUEST INFO

    Contact Us

    Feel free to ask for details, don't save any questions!


    * I agree with privacy policy terms treated pursuant to Italian D. Lgs. 196/03 and EU regulation 2016/679.Privacy Policy

    captcha



    RICHIEDI INFORMAZIONI

      Contattaci

      Scrivici usando il modulo seguente, risponderemo ad ogni tua domanda!


      * Autorizzo il trattamento dei dati personali ai sensi della Legge 196/03 e del Reg.to Ue 2016/679.Privacy Policy

      captcha



      TECHNICAL DATA

      SN33  READ MORE   SN44  READ MORE
      Cutting width 16″ (400 mm) 16″ (400 mm)
      *Suggested cutting height for marble 6″ (150 mm) 10″ (250 mm)
      *Suggested cutting height for granite 4″ (100 mm) 9″ (200 mm)
      Hydraulic motor Adjustable speed Adjustable speed

      *The cutting heights are approximate, considering a professional and daily use of the machine. Cutting capacity thickness depends on the material type.

      **Cutting speed depends on the type of material, the cutting height and the diamond wire employed.

      PRODUCT FEATURES

      Articulated Arm

      The articulated arm is the main feature of all MD DARIO® machineries. It allows the bandsaw to rotate in every direction.

      Column

      The column enables to rotate 360° the machine, realizing multiple circular and shaped cuttings at the same time.

      Arc Cutting Device

      With the arc cutting device, made of a special metric bar, it is possible to cut arcs and circular shapes up to 360°.

      Hydraulic Motor

      Every MD DARIO® marble/granite set is supplied with the hydraulic motor, which enables the operator to use water in complete safety.

      Speed Regulation

      A lever, connected to the hydraulic motor, allows the speed regulation of the diamond wire. In this way, it is possible to cut different materials with the proper speed.

      Copying Device

      The use of the copying device is combined with the template application: the device is leaned on the template and it can reproduce the shape on more stone pieces.

      Bellow Protection

      The bellow protection system protects the wire and it can be regulated according to the cutting height, ensuring a safe work.

      Tilting Device

      With the tilting device SR700M it is possible to tilt 45° the saw.  The regulation can be easily make through a grade hand wheel adjuster.   It must be considered that to higher inclination corresponds a lower side light.

      Material Support

      The material support made of tubes that can be added or removed from the structure, enables to put on materials of different dimensions.

      Pressure Lock

      The pressure lock 250 is a clamping bracket used to fasten the pieces to work.

      ADDITIONAL ACCESSORIES

      Platform 100x 100 cm – Fixing the column on the forklift platform, it is possible to move the SET300 with a pallet truck, without fastening the machine on the ground.

      Platform 140 x 140 cm – The platform 140 x 140cm ensures a bigger working area.  The use of grid platform guarantees the water drainage and a higher stability and safety for the operator.

      This kind of platform can be moved using a forklift, but not a pallet truck.

      Upon request, MD DARIO® can supply also the tank for water drainage model AQ-090, to use in combination with water recycling devices.

      Extended articulated arm –The extended articulated arm BS600EX, reaching an extension of 165 cm allows to cut circular shapes with a maximum radius of 143 cm.

      The length of the articulated arm can be customized, according to the dimensions of the piece to work.
