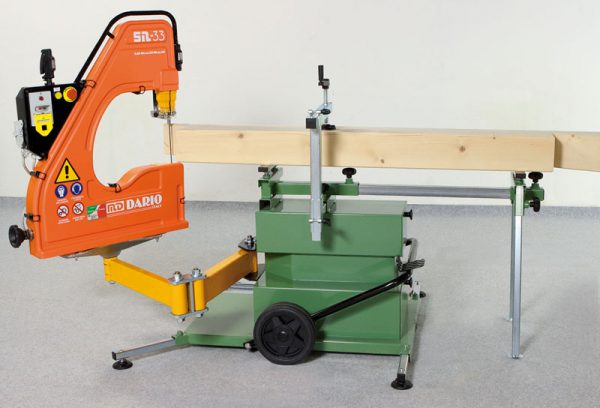

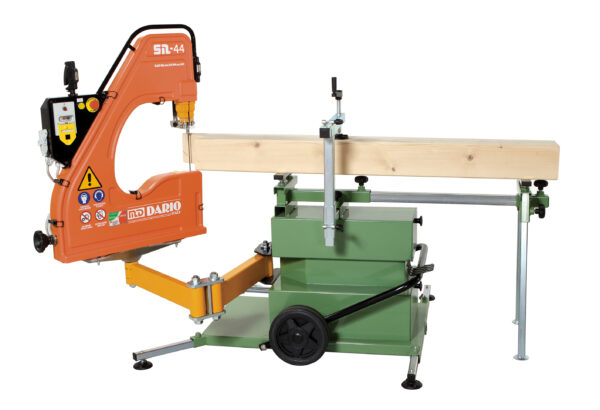

SET 1500

With mobile trolley, to easily move the bandsaw

SET 1500 is realized for those who need to move the machine to different working places.

SET 1500 includes:

  • BANDSAW SN33 OR SN44
  • COPYING DEVICE
  • BELLOW PROTECTION SYSTEM
  • DOUBLE HANDGRIP
  • ARTICULATED ARM BS400  READ MORE
  • MOBILE TROLLEY
  • MATERIAL SUPPORT WITH FRAMEWORK
  • PRESSURE LOCK SYSTEM P-250
REQUEST INFO

    Contact Us

    Feel free to ask for details, don't save any questions!


    * I agree with privacy policy terms treated pursuant to Italian D. Lgs. 196/03 and EU regulation 2016/679.Privacy Policy

    captcha



    RICHIEDI INFORMAZIONI

      Contattaci

      Scrivici usando il modulo seguente, risponderemo ad ogni tua domanda!


      * Autorizzo il trattamento dei dati personali ai sensi della Legge 196/03 e del Reg.to Ue 2016/679.Privacy Policy

      captcha



      TECHNICAL DATA

      SN33  READ MORE   SN44  READ MORE
      Cutting width 15″ (390 mm) 15″ (390 mm)
      Cutting height 10″ (250 mm) 14″ (350 mm)
      Maximum cutting height with special blade-guide 12″ (310 mm) 16″ (410 mm)
      Blade length 100″ (2530 mm) 107″ (2720 mm
      Minimum blade width 0.11″ (3 mm) 0.11″ (3 mm)
      Power of the motor 1.5 HP – 1.1KW 1.5 HP – 1.1KW
      Weight 419 lb (190 Kg) 430 lb (195 Kg)
      *Cutting tolerance, which depends on the type of blade used and on the cutting heights, is considered as the tolerance for standard bandsaw. The use of the blades does not guarantee a tolerance lower than ± 2 mm

      PRODUCT FEATURES

      Articulated Arm

      The articulated arm is the main feature of all MD DARIO® machineries. It allows the bandsaw to rotate in every direction.

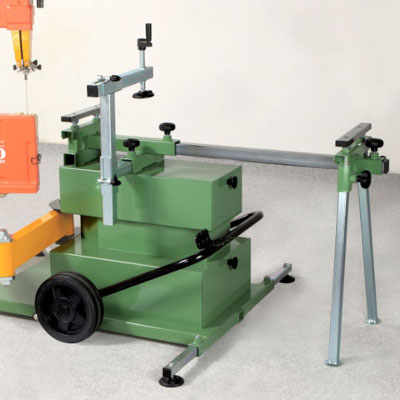

      Mobile Trolley

      The mobile trolley makes possible to move the machine from the usual working spot to construction sites and many other places.

      Material Support

      The material support with framework allows to place on it long pieces of material to work.

      Pressure Lock

      The pressure lock 250 is a clamping bracket used to fasten the wooden pieces to work.

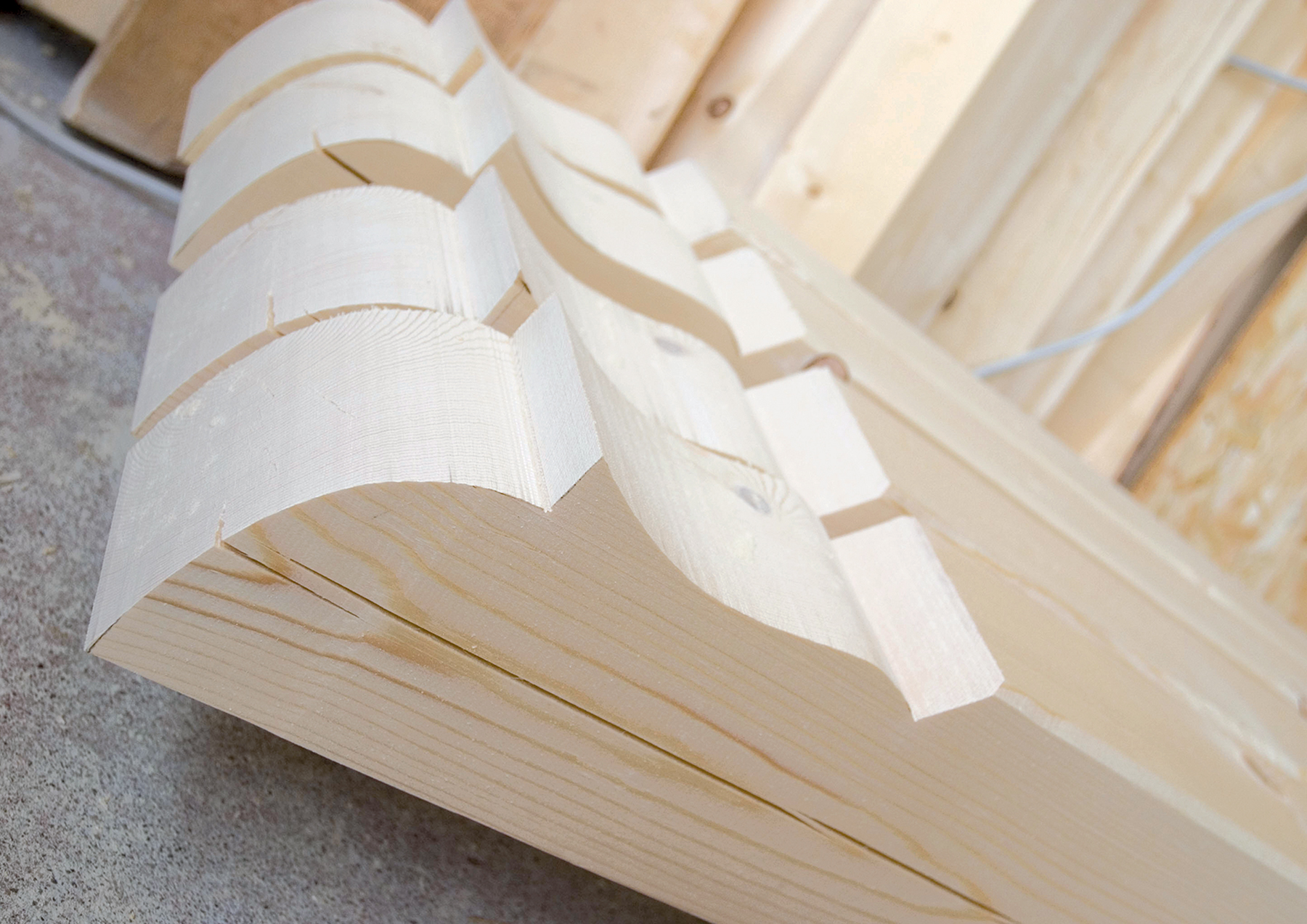

      Copying Device

      The use of the copying device is combined with template application: the device leans on the template and reproduce its shape on several wooden pieces.

      Bellow Protection

      Bellow protection system has been conceived for the operator safety and to protect the blade. It can be regulated according to cutting height, ensuring a work safety.

      Double Handgrip

      The double handgrip means safety: the machine works only when the operator places both hands on the control device.

      ADDITIONAL ACCESSORIES

      SR700 – The tilting device allows to manually tilt the machine up to 45°. The regulation can be easily make through a grade hand wheel adjuster.It must be considered that to higher inclination corresponds a lower side light.

      T100 – The trunk cutting device enables to execute shaped cuttings on circular trunks of different dimensions, with a precise and fast system. It is ideal to realize joint constructions and used to build wooden houses, fences, flowerpots and decorative elements. Watch the video of the device.

      SPECIAL DEVICES

      Manual turning blade guide – This special device allows the operator to twist the blade to 30° and shape the middle of the wooden piece wih 90° cuts. This accessory avoid the saw to crush against the beam.
